$2,583.00  $1,675.00
Save: $908.00 off

Add to Cart:

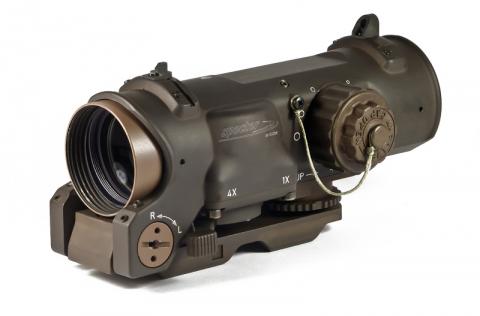

Specter DR 1x/4x

Dual Role Combat Sight

The SpecterDR 4x/1x Dual Role Optical Sight represents a revolution in optical sight design. The world’s first truly dual field of view combat optical sight, the SpecterDR switches instantly from a 4x magnified sight to a 1x CQB sight with the throw of a lever. Unlike zoom sights, the SpecterDR offers an optimized optical path and identical eye relief in both 4x and 1x modes.

Depending upon the situation, the user may adjust the sight to illuminate the crosshair or just a brilliant red dot in the center. In 1x mode, the SpecterDR has by far the largest field of view in the industry. In 4x mode the SpecterDR offers a generous field of view, long eye relief, and ELCAN’S legendary crystal clear image.

The SpecterDR 4x/1x offers the best single solution for both Medium Range and CQB engagements and is designed to withstand the rigors of modern professional use.


Magnification4x / 1x
Length153mm nominal
Width74mm nominal
Height78mm nominal
Weight660g nominal
ReticleDual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles.
Aiming Dot diameter1.5 MoA @ 4x, 6 MoA @ 1x
Ballistic correction:Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles.
DFOV14-C1:CX5395 reticle: 100-600m for 5.56 carbine,700-1000m for 5.56mm LMG
DFOV14-C2:CX5396 reticle: 100-600m for 7.62 rifle, 700-1000m for 7.62mm LMG
CQB offset<44mm @ 60m
Field of View26 deg @ 1x, 6.5 deg @ 4x
FoV @4x11.4 m @ 100 m (34.2 ft @ 100 yds)
FoV @1x48.8 m @ 100 m (146.3 ft @ 100 yds)
Illumination sourceBattery-powered LED
Crosshair illumination5 settings, AN/PVS-22 compatible
Red Dot illumination5 settings, AN/PVS-22 compatible
Eye Relief70mm
Entrance pupil32mm
Exit pupil8mm
Nominal focus150m @ 4x, 70m @ 1x
Fixed focus range20m to infinity
Battery typeDL 1/3N (3v Lithium)
Battery life600 hours minimum, 3000 hours average
Exterior finishHard-anodized aluminum, gray/black color
Adjustment resolution0.5 minute of angle
Adjustment range120 minutes of angle
Base requirementMil-Std-1913 ‘Picatinny Rail’
AttachmentARMS Levers
Waterproof:66 ft for 2 hours
Shockproof:450 g’s


Please click on any image below to see our available reticles. If no reticles are listed please contact us for available options.

  • Model: Specter 1x - 4x
  • Manufactured by: Elcan
